Expert in Smart Stamping and Smart Factory Solutions

Single Machine Multi-Engineering Stamping Robot

  • Suitable for mass production a series products
  • Solve the automatic production of small and medium parts less than 4kg
  • 1 patent for invention 3 utility model patents 1 software copyright
Contact Us Now
Single machine multi engineering

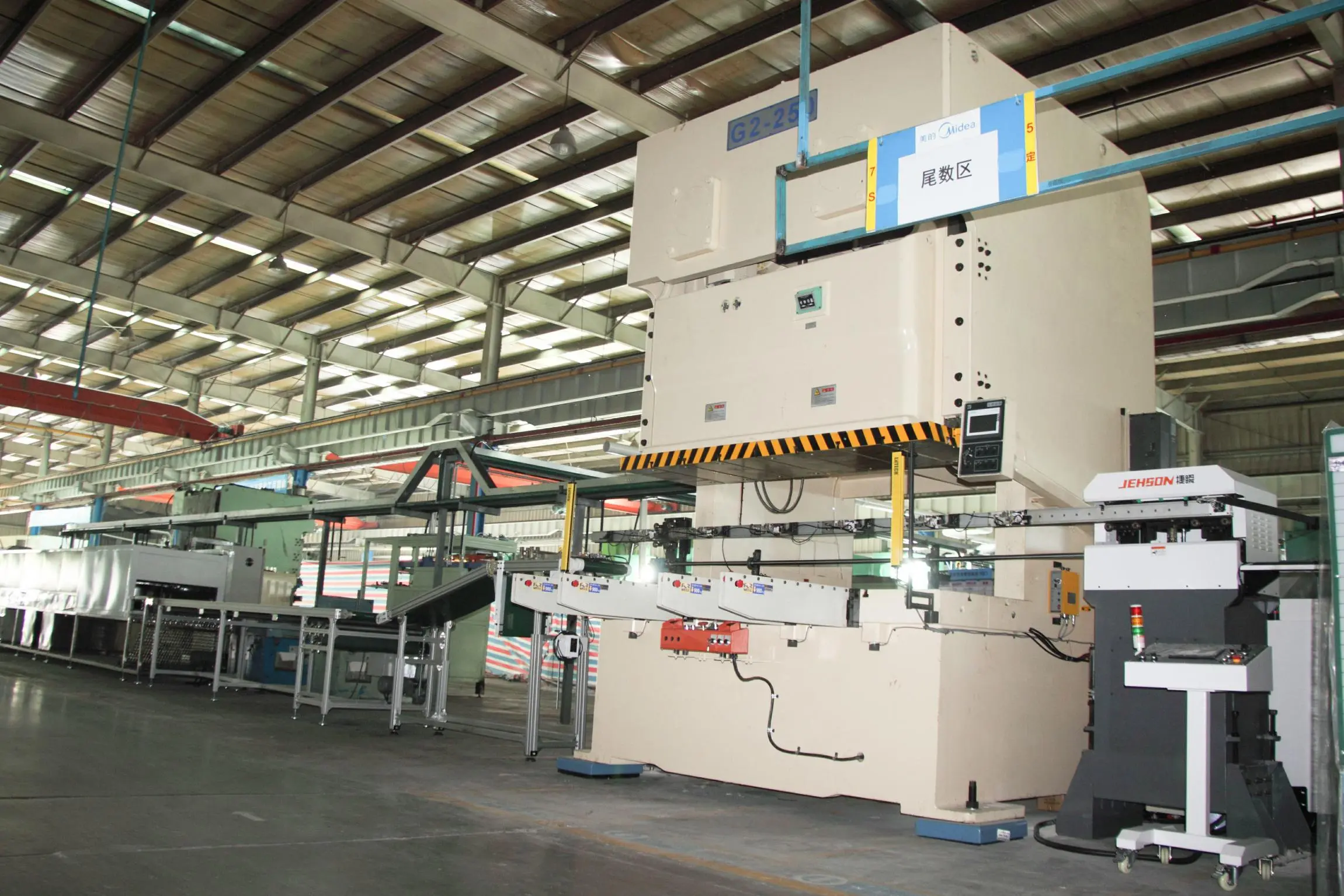

Electric pressure cooker cover intelligent production line

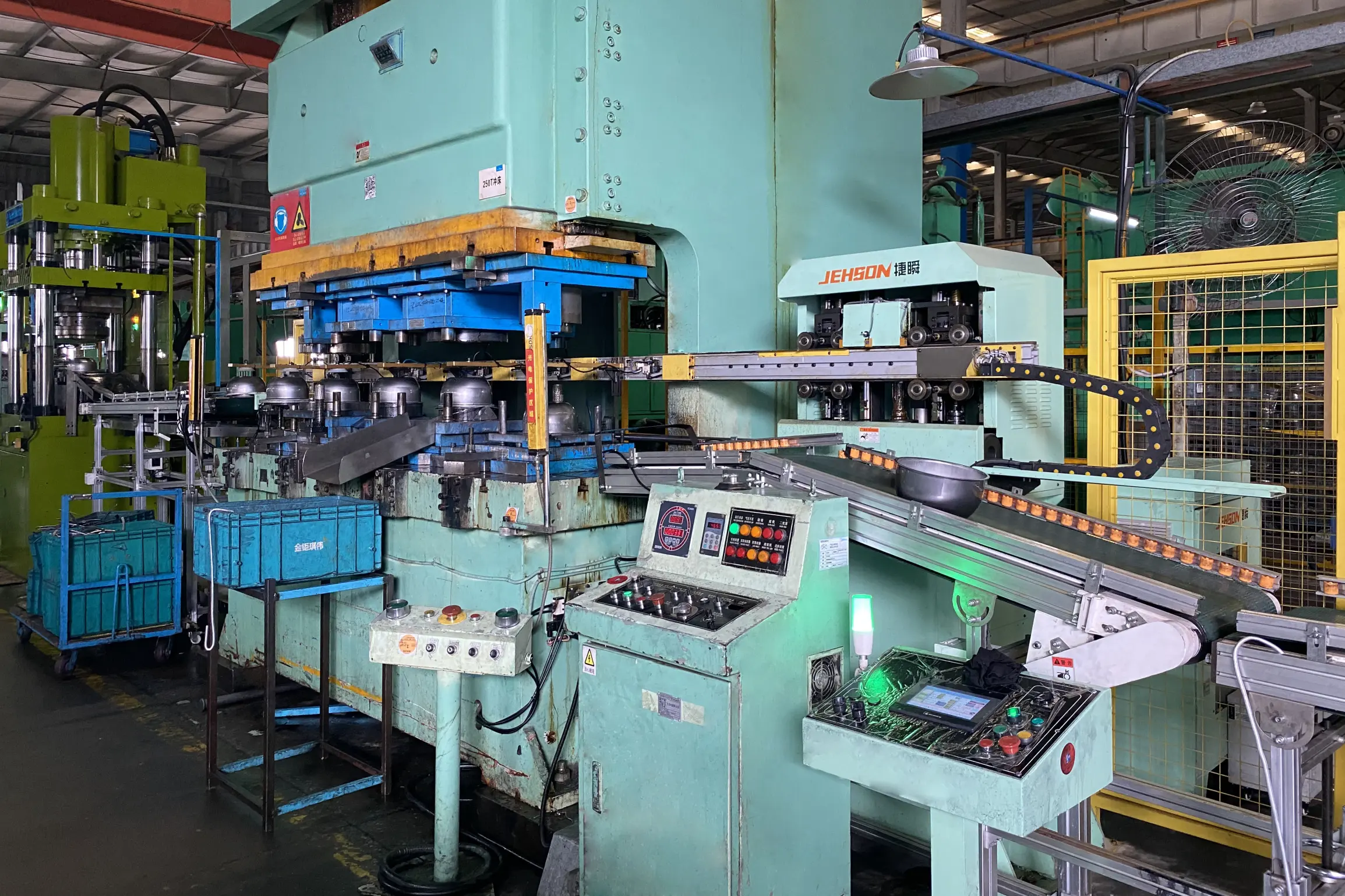

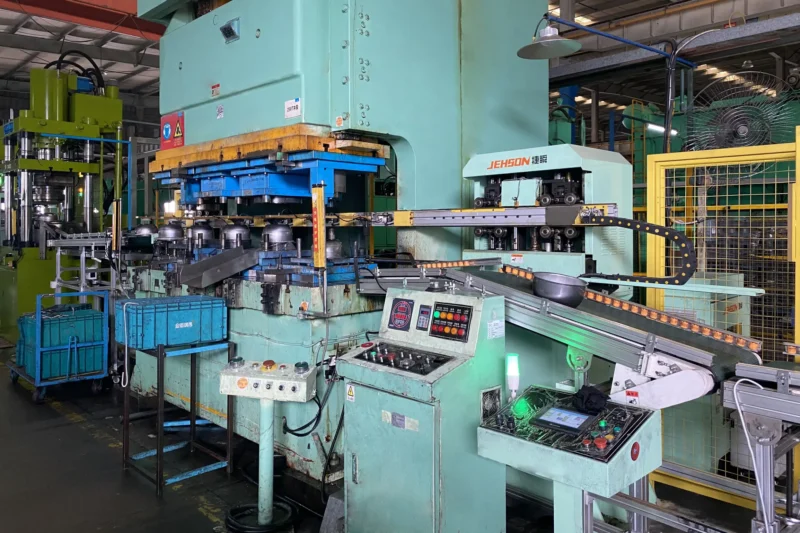

Rice cooker liner intelligent production line

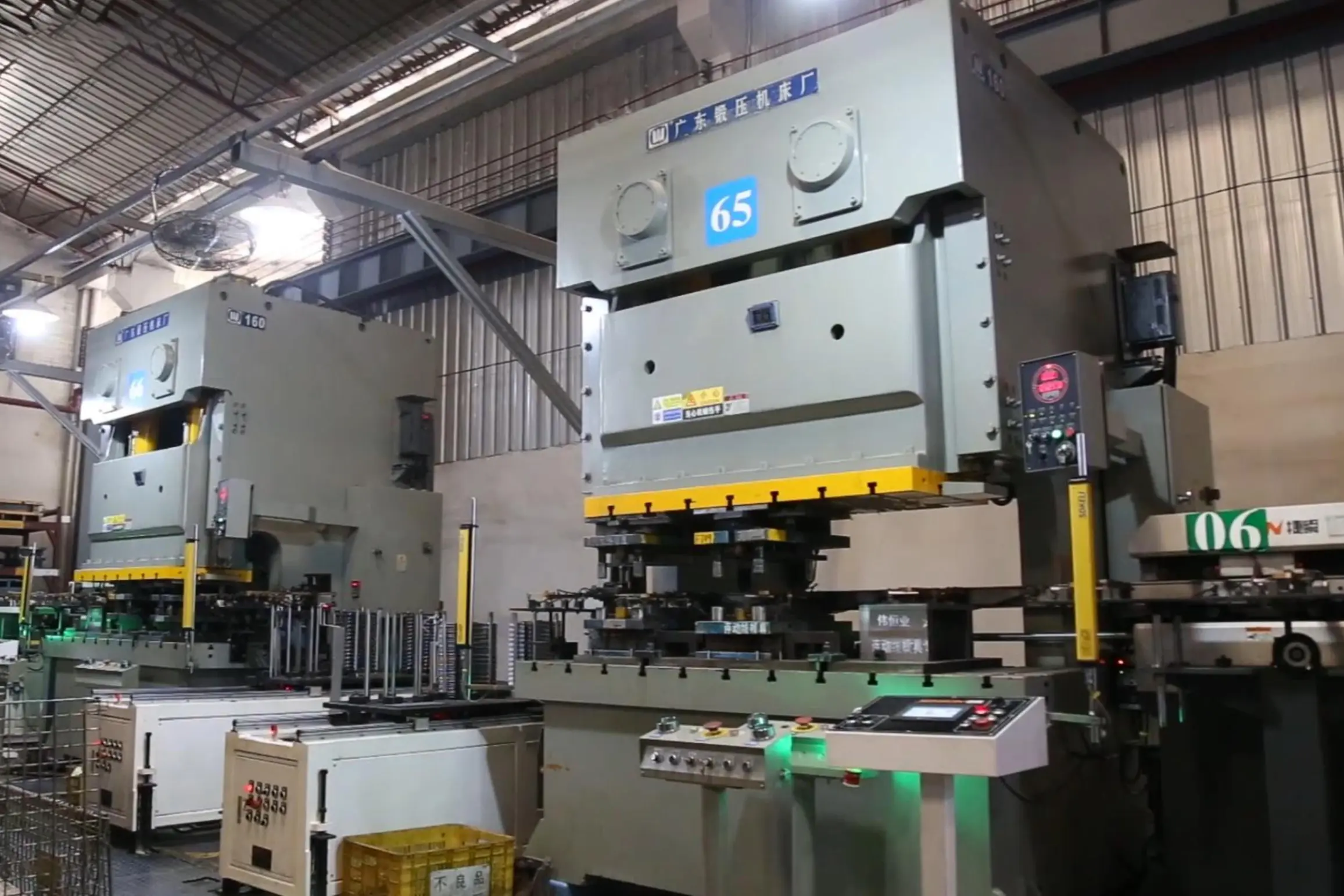

Microwave oven power box intelligent production line

Product Content

JST3-300-80

 JST3-400-80 JST3-500-80 JST3-600-80 JST3-800-80
Power Consumption 2KW/H 2.5KW/H
Air Pressure 0.5Mpa
Working Environment -5~40℃
Relative Humidity 45%-95%
Horizontal Stroke 300mm 400mm 500mm 600mm 800mm
Vertical Stroke 0-80mm
Production Efficiency 16~21 Pcs/min 16~20 Pcs/min 16~18 Pcs/min 15~18 Pcs/min 15~16 Pcs/min
Feeding Accuracy ±0.05mm ±0.1mm
Adsorption Weight ≤4kg
Body Size (L*W*H) 790*580*1500mm
Power Cabinet Size 800*350*1280mm
Mechanical Weight 600kg 800kg
Power Supply 380VAC±10%
50/60Hz
Control Mode PLC/Motion Controller
Servo System AC Servo Motor
Total Power 4~5.5KW

Related Products

Large Hanging Type 3D Robot
Large Hanging Type 3D Robot
Three in One Servo Leveling Feeder
Three-in-One Servo Leveling Feeder
Multi-Machine Linkage Stamping Robot
Multi-Machine Linkage Stamping Robot
Independent Stamping Robot
Independent Stamping Robot
