Expert in Smart Stamping and Smart Factory Solutions

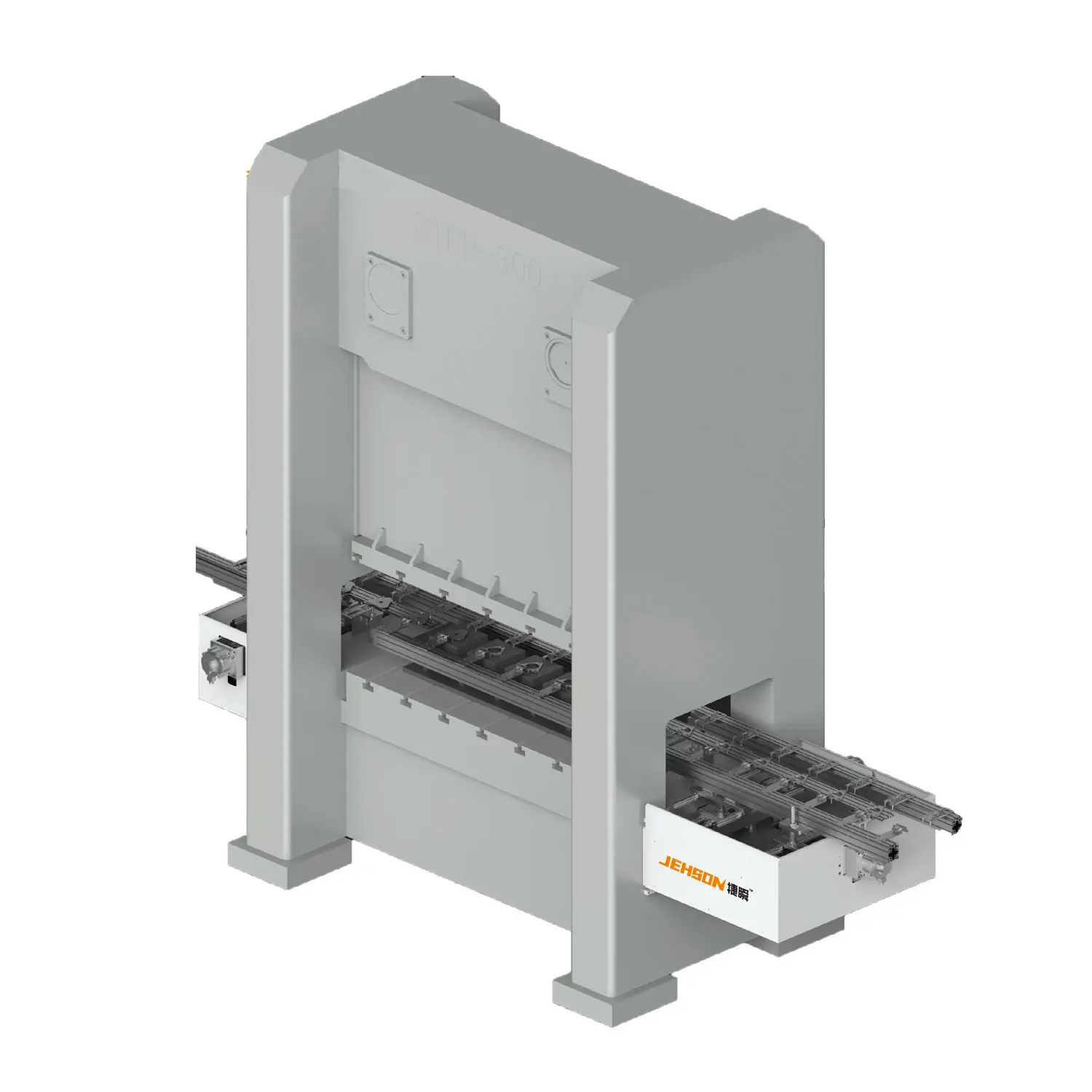

2D Stamping Robot |
||||
| JS-QR-150 | JS-QR-200 | JS-QR-300 | JS-QR-400 | |
| Horizontal Stroke | 150mm | 200mm | 300mm | 400mm |
| Clamping Stroke | 100mm | 120mm | 150mm | 200mm |
| Horizontal Accuracy | ±0.2mm | |||
| Load Capacity | ≤2kg | ≤3kg | ≤4kg | |
| Operating Efficiency | 45 Pcs/min | 40 Pcs/min | 35 Pcs/min | 30 Pcs/min |
| Power Cabinet Size | 1200*40*1780mm | |||
3D Stamping Robot |
||||
| JS-TR-300 | JS-TR-400 | JS-TR-500 | JS-TR-600 | |
| Clamping Stroke | 200mm | 300mm | ||
| Vertical Stroke | 100mm | 120mm | 150mm | |
| Horizontal Accuracy | ±0.1mm | |||
| Load Capacity | ≤2kg | ≤3kg | ≤4kg | |
| Operating Efficiency | 35 Pcs/min | 30 Pcs/min | 25 Pcs/min | 20 Pcs/min |
| Power Cabinet Size | 1200*40*1780mm | |||
Kaishuo Technology was established in 2008 and has since developed a four-core industrial structure comprising robotics and automation equipment, new energy, precision hardware molds, and precision injection molds.
