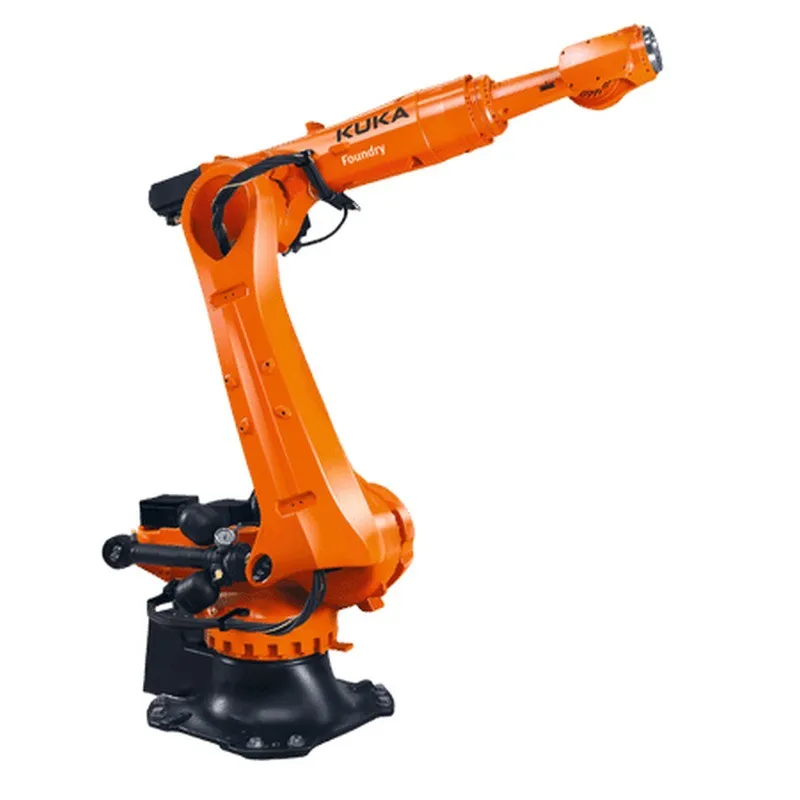

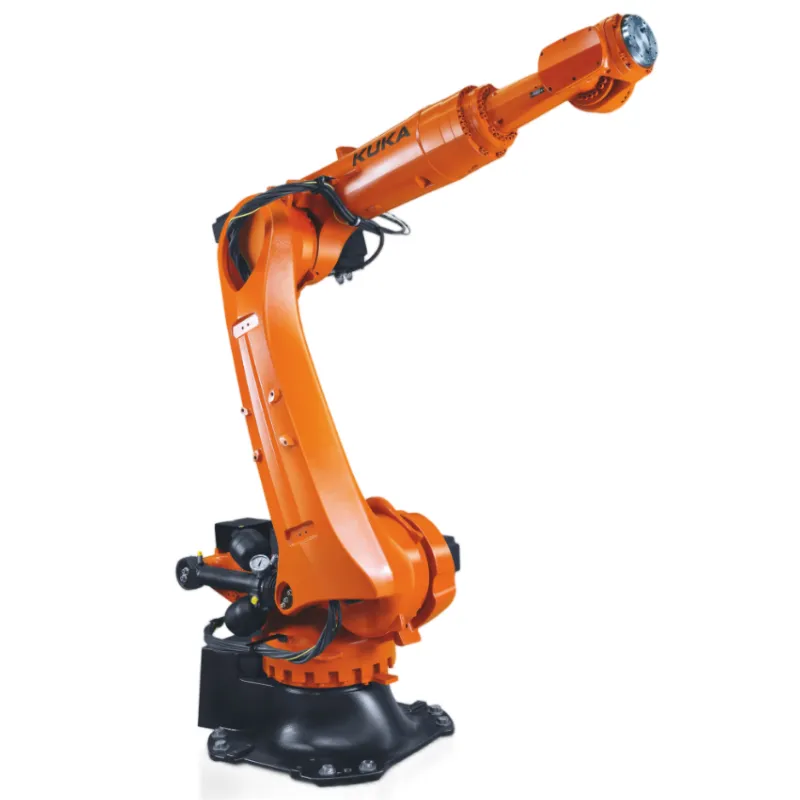

KUKA KR Quantec

Extended Reach
ESD-Certified
Flexibility

Product Content

KR QUANTEC	KR 300R 2700-2	KR 250 R2700-2	KR 240 R2900-2	KR 210 R3100-2	KR 180 R2900-2	KR 210 R2700-2	KR 150 R3100-2
Number of axes	6	6	6	6	6	6	6
Rated payload	300kg	250kg	240kg	210kg	180kg	210kg	150kg
Reach	2,701mm	2,701mm	2,900mm	3,100mm	2,900 mm	2,701mm	3,100 mm
Pose repeatability	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Weight	1,101kg	1,101kg	1,120kg	1,134kg	1,105kg	1,077kg	1,105kg
Variants	F	F	F, HO	F	F	F	F, HO
Installation position	Floor, Ceiling	Floor, Ceiling	Floor, Ceiling	Floor, Ceiling	Floor	Floor	Floor

KR QUANTEC	KR150 R2700-2	KR120 R3100-2	KR120 R2700-2	KR270 R3100-2K	KR210 R3300-2K	KR180 R3500-2K	KR120 R3900-2K
Number of axes	6	6	6	6	6	6	6
Rated payload	150kg	120kg	120kg	270kg	210kg	180kg	120kg
Reach	2.701mm	3,100mm	2,701mm	3,105mm	3,305mm	3,505mm	3,904mm
Pose repeatability	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Weight	1,072kg	1,105kg	1,069kg	1,260kg	1,266kg	1,256kg	1,280kg
Variants	F	F	F, HO	F	F	F	–
Installation position	Floor	Floor	Floor	Floor (shelf)	Floor (shelf)	Floor (shelf)	Floor (shelf)

KR QUANTEC	KR160 R1570 nano			KR120 R1800 nano
Number of axes	6			6
Rated payload	160kg			120kg
Reach	1,573mm			1,803mm
Pose repeatability	±0.06mm			±0.06mm
Weight	677kg			684kg
Variants	–			–
Installation position	Floor, Ceiling			Floor, Ceiling

Operating Conditions
Ambient Temperature During Operation	5°C to 55°C (278 K to 328 K)
Protection Rating
Protection Rating (IEC 60529)	IP65
Robot Wrist Protection Rating (IEC 60529)	IP65/IP67
Control System
Control System	KR C5; KR C4
Certification
ESD Requirements	IEC61340-5-1:ANSI/ESDS20.20
